Volvo DPF Delete: Emulators vs. ECM Tuning
DPF (Diesel Particulate Filter) delete on Volvo trucks and heavy equipment is a hot topic among truck owners and mechanics. As maintenance costs increase, and with ongoing issues involving situational regeneration, many truck drivers seek viable options to remove the DPF, in order to improve the dependability of their engines.
Today, there are two main solutions on the market: DPF emulators and ECM tuning (engine control module reprogramming). Let’s look at how they function, their advantages and disadvantages, and which choice might suit your Volvo trucks best.
What Is the DPF Emulator?
Figure 1
The DPF emulator connects to a truck’s ECM and pretends to send signals to the DPF sensors. To the ECM, it looks like the filter is working normally—even though it’s been removed.

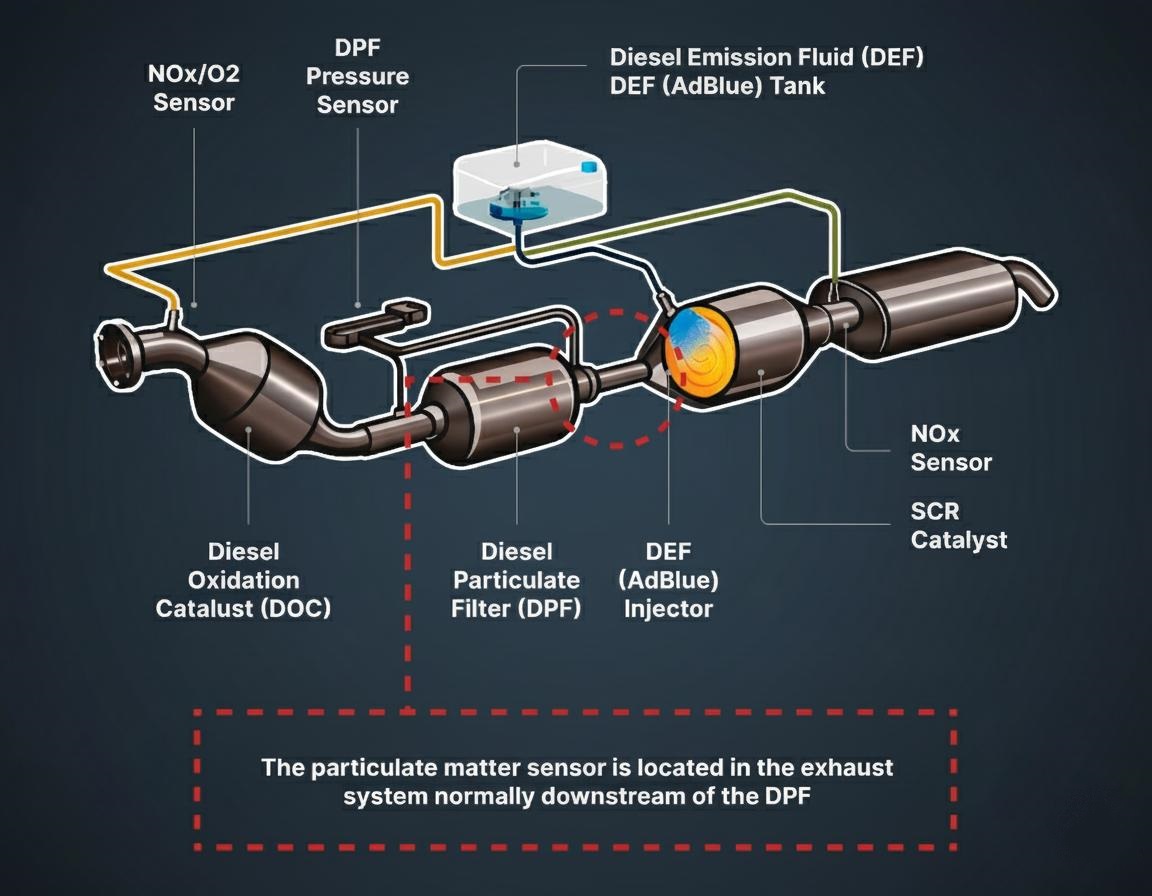

Key DPF Sensors
Pressure sensors identifiy the resistance value and will trigger the regeneration process.
Temperature sensors – prevent overheating of the filter and nearby components.
O₂ and NOx sensors - make sure there’s no wasted fuel and lower pollution.
Figure 2
All sensors provide individual functionality, collectively preserving the operational functionality of the DPF system.
DPF Emulators Advantages
Simple installation without altering factory software.
Can be removed to restore the stock system.
Sometimes more acceptable legally in regions where ECM tuning is restricted.
DPF Emulators Drawbacks
Not always compatible with every Volvo model.
Quality emulators can be expensive.
Cheap devices may cause error codes.
Installation Considerations
Leaving the DPF in place – it will eventually clog since regeneration no longer works. This leads to higher backpressure, loss of power, increased fuel consumption, and possible engine overheating.
Physically removing the DPF involves putting in an empty chamber or a straight pipe. This gets rid of the chances of clogging and enables the engine to “breathe freely.”
In practice, most mechanics recommend combining an emulator with physical DPF removal for best results.
What Is the ECM Tuning?
ECM tuning means reprogramming the engine control module to disable all DPF functions. It’s a deeper, software-based solution that completely removes regeneration cycles and sensor monitoring.
ECM Tuning Advantages
Full control over engine settings.
Capability to deactivate EGR and SCR systems simultaneously.
Usually provides improvements in fuel efficiency and gains in power.
ECM Tuning Drawbacks
Needs an expert who has some specific tools.
Reverting back to stock settings is more complex.
In regions with strict emissions enforcement, it may lead to fines.
Two Approaches to ECM Tuning
ECM tuning without removing the DPF – ideal if you just want to improve performance or fuel efficiency while keeping emissions compliance.
ECM tuning with DPF delete – chosen when the filter is too clogged or repair costs are high. The DPF is physically taken off, and its functions are turned off in the ECM so that no errors or power limitations occur.
DPF Emulator vs ECM Tuning – Side-by-Side Comparison
Criteria | DPF Emulator | ECM Tuning |
|---|---|---|
Cost | Medium to high | Medium, depends on service |
Flexibility | Simulates DPF & SCR | Full system customization |
Reversibility | Easy to restore | More difficult |
Reliability | Depends on device quality | High with proper tuning |
Which Option Should You Choose?
DPF Emulator is the best if you want a quick, reversible fix.
ECM tuning is the best for those wanting complete optimization of the engine and wanting reliability for the long haul.
Both methods work, but the right choice depends on your goals, budget, and where you operate your truck.
Conclusion
Deleting the DPF on Volvo trucks can be done in more than one way. ECM tuning provides complete performance enhancements and considerable deep customization, while emulators shine for their ease and adaptability.
The golden rule: always trust experienced professionals and use proven solutions. Done right, a DPF delete can save you money, reduce downtime, and keep your Volvo truck running strong for years to come!
